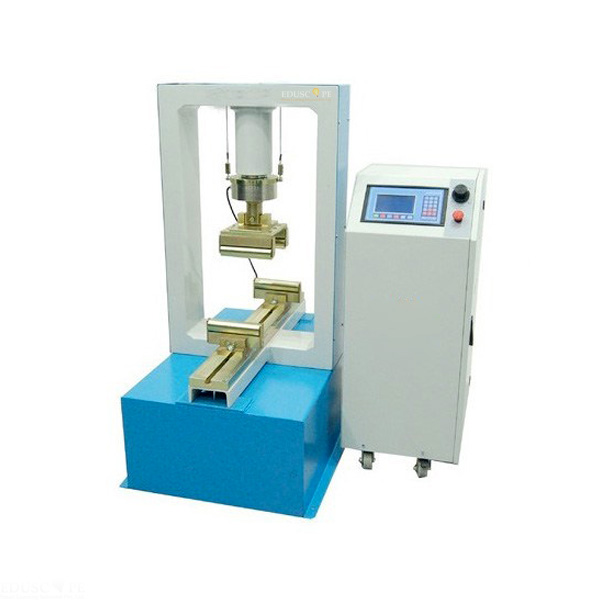

Flexure Testing Machine Digital Manufacturer,Supplier and Exporter in China
Product Code : EL-CTLE-11207
Edulab China automatic range of 100 kN and 200 kN capacity flexure testing machines have been designed to meet the need for reliable and consistent testing of flexural test on standard concrete beams, transverse test on kerbs and flagstones, indirect tensile tests on concrete and interlocking pavers. All Test International machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameter have been introduced, it is sufficient to press the START button to complete the test.
The key characteristics of the flexural test machines are:
Menu Driven Software for easy operation
Load vs time plot and instantaneous load rate displayed
Automatic test cycle with standard Rapid Approach
Graphical – LCD Data Acquisition and Control System
Metric, Imperial Units
Data storage up to 256 tests
Accurate load rate control within ±5 from 1 kN/sec to 20 kN /sec
Class 1 starting from % 10 of the full range
Frame: The versatile load frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is welded steel fabrication carrying the ram fitted to the upper crosshead. All frames have a single acting down-stroking ram Edulab China with over travel switch protection to shut the machine down should maximum ram travel be reached. The return of the ram is done by dead weight to get maximum accuracy on the load measurement. The load cell is used for load measurements. All flexural frames have been designed Edulab China to accept all the accessories for flexural and transverse tests. Flexural Frames model is 100kN capacity and model is 200kN capacity. Both frames can be connected to any Test International compression machine as a second frame.
The main characteristics are:
Piston return by dead weight
Can accept all required accessories for mentioned standards
Two capacity High stability welded assembly
75 and 100 mm piston stroke with safety limit switch
Power Pack: The dual stage power pack which is controlled by Edulab China 100 is designed to supply required oil to the frames. Very silent power pack can load a specimen between 1 kN/ sec to 20 kN/sec. On the dual stage pump high delivery low pressure pump is used for rapid approach and low delivery high pressure radial piston pump is used for test execution. On all power packs maximum pressure valve is used to avoid machine overloading.
The main characteristics are:
750 W power
25 litre oil capacity
Dual stage pump
60-100 mm/min fast approach speed
Safety Features: All Test International compression machines are fitted with:
Front and rear gates edu scope with transparent durable flexi-glass
Max pressure valve to avoid machine overloading
Travel switch to prevent excessive piston travel
